CNC Machining for Optical Equipment Parts
Optoelectronic systems, advanced laser instrumentation, and imaging technologies require mechanical components with uncompromising dimensional stability. Even nanometer-level shifts caused by thermal expansion or structural deflection can misalign optical paths, leading to wave-front distortion and system failure. At 6CNC, we provide manufacturing solutions for complex optical equipment parts, utilizing multi-axis CNC machining to deliver the geometric accuracy, surface integrity, and tight tolerances mandatory for high-end optical systems.
Trusted by
industry leaders
Structural Integrity: Low-Stress Machining for Optical Enclosures and Housings
Housings for laser systems, lens barrels, and sensor enclosures must protect delicate optical elements while maintaining absolute alignment over broad temperature ranges. Aluminum alloys like AL6061-T6 and AL7075-T6 are widely selected for their excellent strength-to-weight ratio; however, internal residual stresses can cause microscopic warping after machining.
To counteract this, our production engineers at 6CNC employ specialized multi-stage thermal stress-relieving processes and custom-designed soft-jaw fixturing. This precision control allows us to achieve concentricity and cylindricity within ±0.01mm on critical internal diameters, ensuring that multi-element lens assemblies slide perfectly into place without binding or tilting. By utilizing ultra-high-speed spindle setups, we achieve flawless thread profiles and O-ring grooves that secure environmental sealing for sensitive indoor and outdoor optical systems.
Our Optical Equipment Parts Machining Capabilities
6CNC offers a full range of machining capabilities for custom optical and photonics parts, from rapid prototypes to high-volume production runs.
CNC Milling
We machine complex 2.5D and 3D geometries for optical housings, sensor enclosures, mounting brackets, and instrument chassis. CNC milling is ideal for creating intricate internal cavities, deep pockets, threaded mounting holes, precise alignment slots, and flat mating surfaces that prevent light leakage.
CNC Turning
For round or cylindrical optomechanical components, CNC turning delivers exceptional concentricity and highly efficient cycle times. It is the optimal manufacturing choice for precision lens barrels, camera shutter sleeves, fiber optic connectors, adjustment dials, retaining rings, and custom fine-pitch threaded shafts.
5-Axis Machining
5-axis machining minimizes multi-setup errors on complex optical components with compound angles. Fewer setups guarantee superior positional tolerance, precise perpendicularity, and seamless feature relationships, effectively eliminating alignment risks on delicate laser cavities and multi-axis kinematic mounts.
CNC Machining
Our comprehensive CNC machining services integrate cutting-edge production technology with rigorous quality protocols. We handle everything from baseline structural mechanical parts to complex optoelectronic assemblies, ensuring absolute geometric fidelity and rapid turnaround for both high-variance prototypes and scalable production lots.
Surface Integrity and Optical Tuning Components
Optical mirrors, gratings, and adjusting mounts require exceptional surface finishes to minimize stray light scattering and maximize signal-to-noise ratios. For adjusting mechanisms such as fine-pitch screw mounts and kinematic stages, eliminating backlash and stick-slip motion is essential for sub-micron positioning.
We machine critical positioning hardware from controlled-expansion alloys like Invar 36 and Kovar to match the thermal characteristics of optical glass. To meet the stringent aesthetic and functional requirements of the photonics industry, we support specialized industrial surface finishing processes. Our capabilities include non-reflective matte black anodizing (Type II/III) to eliminate internal reflections, as well as electroless nickel plating to provide superior wear resistance on sliding contact points, all while maintaining strict dimensional control over tight-tolerance interfaces.
Stringent Quality Controls and Metrology for Optoelectronics
Mechanical compliance in optical engineering is inherently linked to optical performance. According to the international engineering guidelines and compliance standards set by the SPIE (International Society for Optics and Photonics), precise control over geometric dimensioning and tolerancing (GD&T) is the foundational prerequisite for modern optomechanical design and assembly.

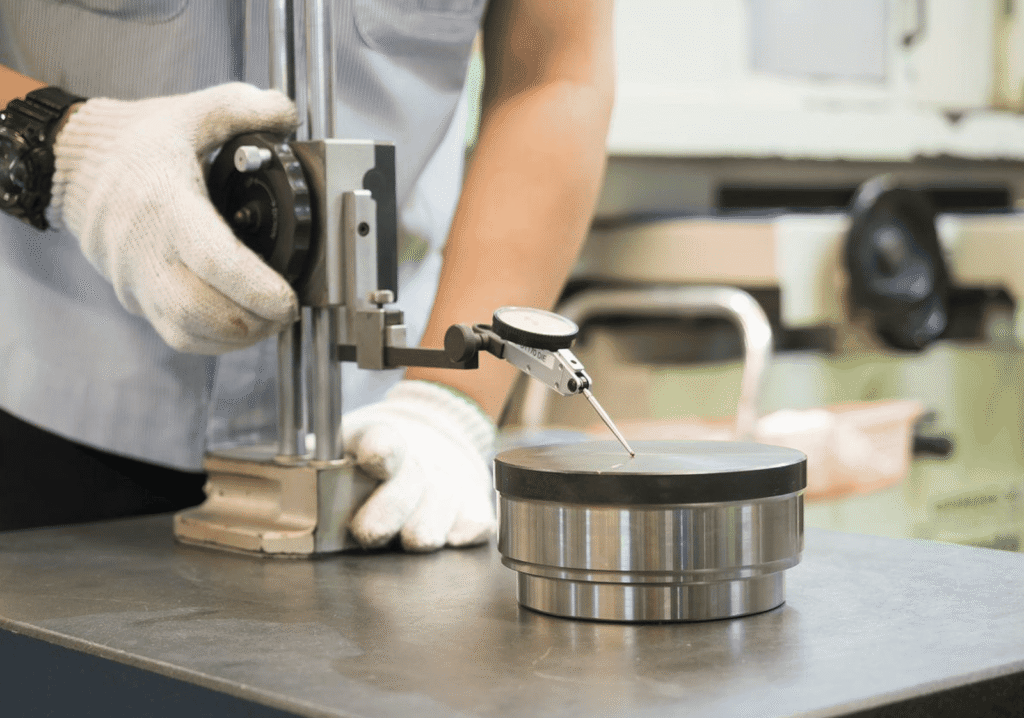

To meet these strict technical milestones, every batch of optical equipment parts undergoes precise inspection protocol. Our quality control facilities utilize high-magnification optical comparators, coordinate measuring machines (CMM), and surface profilometers to verify flatness, parallelism, and true position. We thoroughly check all internal bores and mating surfaces to ensure your components integrate seamlessly into your cleanroom assembly lines without requiring secondary manual fitting.
Technical Specifications & Material Capabilities
We process an extensive selection of engineering materials optimized for demanding optomechanical configurations:
| Material Category | Common Alloys | Target Optical Applications |
| Dimensionally Stable Aluminum | AL6061-T6, AL7075-T6 | Lens barrels, camera housings, optical breadboard plates |
| Low-Expansion Alloys | Invar 36, Kovar, Titanium | Laser cavities, mirror mounts, aerospace optical structures |
| High-Wear Copper Alloys | C36000 Brass, Phosphor Bronze | Fine-pitch adjustment screws, bushings, linear guides |
| Advanced Polymers | PEEK, Delrin (POM), Teflon | Non-marring lens retaining rings, isolators, shutters |
Contact 6cnc
Whether you are designing a prototype laser collimator or scaling up manufacturing for industrial imaging systems, upload your STEP/IGS files today for a detailed Design for Manufacturability (DFM) analysis and a fast commercial quote.
