Automotive CNC Machining
From Prototype to Small-Batch Production

Automotive Dimensional Control & Inspection

Automotive assemblies can fail a fit check even when individual linear dimensions appear acceptable. A bearing housing needs controlled bore position and alignment; an actuator body may need coaxial ports; and a coolant manifold needs sealing-face flatness and specified surface texture. We build the inspection plan around these functional interfaces and the drawing datums.

For eligible part geometries, selected features can be machined to ±0.003 mm. The tolerance and measurement method are confirmed against material, size and process capability. CMM measurements, optical inspection, bore gauges and roughness testing are applied according to the defined characteristics—not as a substitute for a feature-specific plan.

• Fit and alignment: bearing-seat diameter, coaxiality, hole position and perpendicularity
• Sealing interfaces: flatness, groove dimensions, surface roughness and burr control
• Documentation: FAI and dimensional reports, material certificates and CoC when requested
• Repeat builds: revision identification, in-process checks and traceable batch records
• Automotive approval: PPAP-related deliverables reviewed and quoted by agreed customer scope

Automotive Applications & Engineering Challenges

Automotive parts present different machining risks depending on function. At 6CNC, the machining route is designed around thermal behavior, mechanical loading, assembly interfaces and measurement access—not simply the external outline of a CAD model.

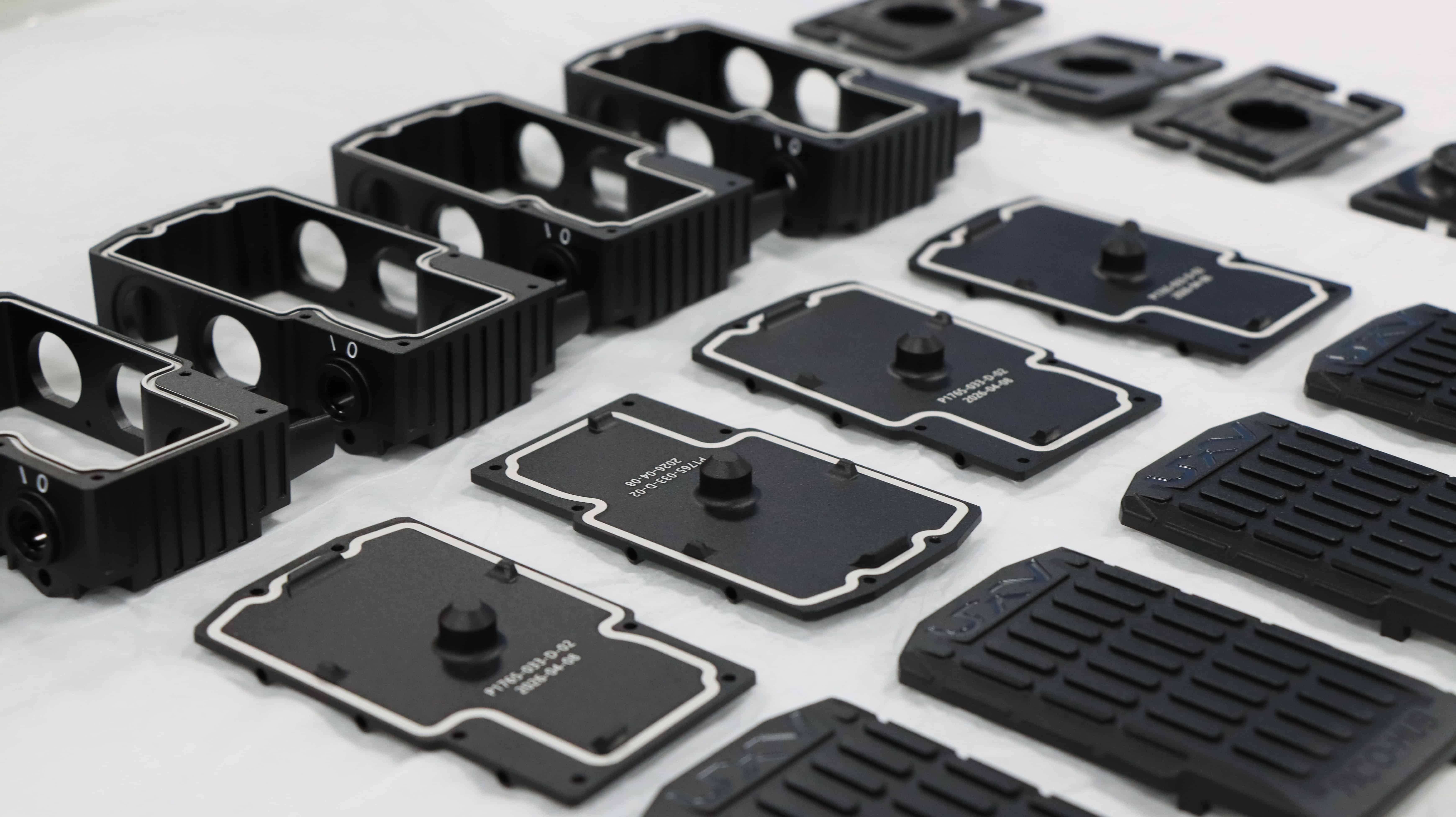

Electric vehicle systems: inverter enclosures, battery mounting plates and motor brackets can combine thin walls, deep cavities and several precision mounting faces. Stable fixturing and a deliberate machining sequence help control distortion after heavy material removal.

Powertrain and transmission: shafts, sleeves, bearing housings and gearbox development parts depend on bore alignment, bearing fits, concentricity and controlled contact surfaces. Turning, mill-turn operations and selected grinding steps can maintain related features through the process.

Thermal management: cooling plates and fluid manifolds introduce narrow channels, threaded ports and sealing grooves. Tool access, deburring, surface finish and dimensional inspection are considered before producing test parts.

ADAS and automotive electronics: sensor mounts and camera housings require repeatable locating features, controlled flatness and accurate interfaces across several sides of a component.

• EV housings: thin-wall stiffness, pocket depth and datum stability
• Transmission parts: concentricity, bearing fits and wear interfaces
• Fluid components: sealing grooves, port intersections and cleanliness
• Sensor assemblies: locating features, mounting positions and repeatability

Prototype Validation to Repeatable Pilot Runs

Vehicle development programs change rapidly after assembly trials, thermal cycles and vibration testing. A motor bracket may need a revised bolt pattern; an enclosure may require added clearance around a connector; a fluid block may need a different port geometry. CNC production supports these changes without a new casting or stamping die.

6CNC handles one-off validation parts and small batches, typically 1–600 pieces depending on geometry. At each release, the drawing revision, critical features and agreed inspection method are carried into the next build so the team can distinguish intentional design changes from manufacturing variation.

• Functional prototype: check assembly fit, access, weight and interface clearances
• Engineering validation: test loads, temperatures, sealing behavior and selected finishes
• Pilot lot: establish fixtures, stable machining sequence and first-article acceptance
• Repeat order: retain revision-controlled process notes and inspection checkpoints

Lead-Time Planning for Automotive Build Milestones

A late machined component can hold up an entire engineering build. We therefore plan delivery around the actual route: stock availability, CAM programming, fixture preparation, machining, heat treatment or coating, inspection and shipment. An anodized inverter housing and a hardened ground shaft do not have the same scheduling risks.

Simple CNC prototypes may be available in 1–7 days when material and capacity permit. Complex features, surface treatment and pilot-lot documentation require a confirmed project schedule. For urgent verification, we can review whether first-article samples or partial shipments can support your build sequence.

• Provide the test-build date and quantity required at each milestone
• Identify long-lead stock, heat treatment and coating requirements early
• Agree first-article sign-off before releasing a larger pilot batch
• Plan shipment splits, protective packaging and revision labels in advance

Automotive DFM & Machining Cost Optimization

Cost reduction starts by protecting the dimensions that determine function and relaxing features that do not. On an EV controller housing, unnecessarily tight tolerances across every pocket increase cycle time without improving the gasket seal. On a steel shaft, poorly placed reliefs or excessive length-to-diameter ratios can make stable machining and inspection more difficult.

Our DFM review considers tool reach, setup count, clamping access, internal corner radii, wall stiffness, heat-treatment distortion and post-finish dimensional allowances. For example, separating a critical bearing seat from noncritical outer contours can focus precision machining and inspection where it provides measurable value.

• Identify functional datums and tolerance only the features that require it
• Review deep pockets, thin walls and small internal radii for tool access
• Consider stock size, material removal and the number of setups
• Allow for anodizing, plating or heat treatment on critical fits
• Quote quantity breaks and repeat-order demand to compare cost per part
