5-Axis CNC Machining for Complex Multi-Face Parts
6CNC manufactures complex parts with angled surfaces, deep features, compound geometry, and tightly related details across multiple faces. We review datum strategy, tool access, setup reduction, tolerance, material, finishing, and inspection before quotation.
Control Complex Features from a Stable Datum Strategy
Complex parts often require machining across several faces. Re-clamping the workpiece for every orientation adds setup time and can introduce alignment variation between related features.
Indexed 3+2 machining repositions the part and cuts with locked rotary axes. Simultaneous 5-axis machining moves linear and rotary axes together for continuous contours, undercuts, and changing tool angles.
The right route depends on geometry, tolerance, surface requirements, tool reach, workholding, collision risk, material, quantity, and inspection. Send the controlled drawing so our engineers can confirm whether 3-axis, 3+2, or simultaneous 5-axis is justified.
Choose the Simplest Multi-Axis
Process That Controls the Part
More axes are useful only when they reduce setups, improve access, or protect feature relationships.
3-Axis CNC Milling
Efficient for parts dominated by accessible flat faces, pockets, slots, holes, and profiles that do not require frequent reorientation.
3+2-Axis Machining
Best when several angled faces or features can be reached by indexing the workpiece, then machining with the rotary axes locked.
Simultaneous 5-Axis
Use for continuous contours, changing tool angles, undercuts, deep access, complex surfaces, or geometry that cannot be divided into fixed orientations.
Multi-Axis Machining for Complex Geometry
Our process planning matches machine motion, tooling, workholding, verification, and finishing to the features that control fit and function.
Indexed 3+2 Machining
Multiple fixed orientations for angled holes, faces, pockets, and datum-related features.
Simultaneous 5-Axis
Continuous multi-axis motion for complex contours, undercuts, and changing tool vectors.
Complex Surface Control
Shorter tools and controlled orientation support deep features and demanding surface geometry.
Inspection Planning
Datums, profiles, positions, angles, and complex surfaces matched to appropriate measurement methods.
From Complex Prototype to Repeatable Small Batches
Five-axis production controls evolve as geometry and acceptance criteria mature.
Prototype 5-Axis Machining
Validate tool access, fit, surface quality, assembly, and critical feature relationships.
- Start from one part
- Fast engineering feedback
- Design-learning focused
Small-Batch Production
Use stable workholding, approved toolpaths, coordinated finishing, and planned inspection.
- Flexible quantities
- First-article verification
- Production-grade controls
Repeat-Order Support
Protect revision, setup, tooling, inspection, and acceptance knowledge for recurring demand.
- Revision control
- Repeatable inspection
- Delivery scheduling

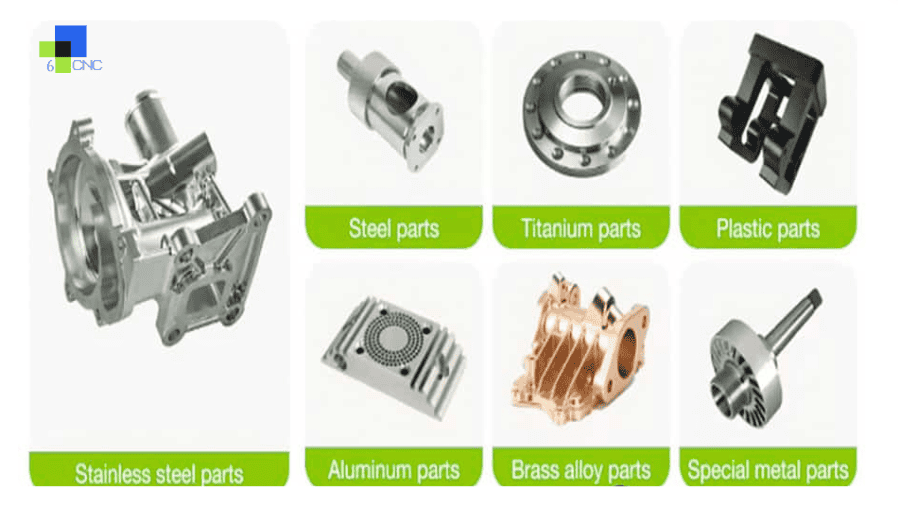

Materials for Precision 5-Axis Machining
6CNC mills a broad range of metals, plastics, and composites for prototypes and small batches. Select a material to review common grades, milling considerations, compatible finishes, and RFQ requirements.
Aluminum
Aluminum offers an excellent balance of strength and weight, making it a preferred choice for mechanical components. Its natural oxide layer provides reliable resistance against corrosion, even in demanding environments.
- Material group
- Metal alloy
- Grades / options
- Aluminum 6061 Aluminum 6063 Aluminum 6082 Aluminum 7075 Aluminum 2024 Aluminum 5052 Aluminum A380
- Compatible finishes
- As machined, bead blasting, anodizing, chromate conversion, powder coating, polishing
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
Stainless Steel
6CNC delivers high-precision stainless steel CNC machining for durable, custom-engineered parts. From rapid prototyping to full-scale production, we support demanding applications across global industries with consistent quality and tight tolerances.
- Material group
- Metal alloy
- Grades / options
- Stainless Steel 201 Stainless Steel 301 Stainless Steel 303 Stainless Steel 304 Stainless Steel 316 Stainless Steel 416
- Compatible finishes
- As machined, passivation, polishing, bead blasting, electropolishing, plating
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
Brass
6CNC provides precision brass CNC machining for custom parts and prototypes, delivering excellent surface finishes, tight tolerances, and efficient production turnaround.
- Material group
- Metal alloy
- Grades / options
- Brass C35600 Brass C36000 Brass C37700 Brass C37000 Brass C37100 Brass C28000 Brass C26000 Brass C24000 Brass C22000
- Compatible finishes
- As machined, polishing, nickel plating, tin plating, protective coating
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
Copper
6CNC delivers high-precision copper CNC machining for custom parts, ensuring outstanding electrical conductivity, dimensional accuracy, and long-term reliability across demanding applications.
- Material group
- Metal alloy
- Grades / options
- Copper C11000 Copper C12000 Copper C12200 Copper C10100
- Compatible finishes
- As machined, polishing, nickel plating, tin plating, protective coating
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
Titanium
6CNC offers precision titanium CNC machining for aerospace, medical, and automotive applications. We manufacture high-accuracy, high-strength components to your exact specifications, even for complex geometries and tight tolerances.
- Material group
- Metal alloy
- Grades / options
- Titanium Grade 2 Titanium Grade 5 (Ti-6Al-4V) Titanium Grade 7 Titanium Grade 9 (Ti-3Al-2.5V) Titanium Grade 23 (Ti-6Al-4V ELI)
- Compatible finishes
- As machined, bead blasting, polishing, anodizing, passivation
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
Mild Steel
Mild steel features low carbon content, making it easy to machine, weld, and form while still providing reliable mechanical strength at a cost-effective price point. It’s widely used for structural components, fixtures, and general engineering parts.
- Material group
- Metal alloy
- Grades / options
- Steel S235JR | 1.0038 Steel C45 | 1.0503 Steel S355J2 | 1.0570 Mild Steel 1045 Mild Steel A36 Mild Steel 1018
- Compatible finishes
- As machined, black oxide, zinc plating, nickel plating, powder coating
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
Alloy Steel
6CNC manufactures precision alloy CNC machined parts using advanced machining technologies, ensuring consistent quality, high strength, and reliable performance across demanding applications.
- Material group
- Metal alloy
- Grades / options
- 4140 Steel 4340 Steel 1215 Steel 16MnCr5 Specialty Alloys
- Compatible finishes
- As machined, black oxide, plating, heat treatment, grinding
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
Tool Steel
Tool steel is engineered for high hardness, wear resistance, and dimensional stability, making it ideal for molds, dies, cutting tools, and other high-stress applications.
- Material group
- Metal alloy
- Grades / options
- Tool Steel A3 Tool Steel H13 | 1.2344 Tool Steel S7 Tool Steel O1 Tool Steel A2 | 1.2363 Tool Steel D2 | 1.2379
- Compatible finishes
- As machined, heat treatment, grinding, polishing, coating
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
Polycarbonate
Polycarbonate combines impact resistance, low weight, and optional optical clarity. Machining plans should account for heat generation, residual stress, edge quality, workholding marks, and whether transparent surfaces require polishing or protective handling.
- Material group
- Plastic or composite
- Grades / options
- Polycarbonate (PC). Confirm grade, color, transparency, certification, and cosmetic requirements on the drawing or RFQ.
- Compatible finishes
- As machined, polishing, protective handling
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
Nylon
Nylon CNC machining allows the creation of precise, durable, and lightweight components suitable for a wide range of industrial applications. 6CNC provides high-quality custom nylon parts, delivering reliable performance and excellent wear resistance.
- Material group
- Plastic or composite
- Grades / options
- Nylon 66
- Compatible finishes
- As machined, tumbling, dyeing where applicable
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
ABS
ABS has good impact strength, dimensional stability, and is easy to finish with painting, plating, or silk screening. Its relatively low cost and versatility make it a top choice across many industries.
- Material group
- Plastic or composite
- Grades / options
- ABS (Standard) Flame Retardant ABS (FR-ABS) ABS+PC Glass Fiber Reinforced ABS
- Compatible finishes
- As machined, painting, plating, silk screening
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
Delrin (POM)
Delrin CNC machining produces strong, low-friction, and dimensionally stable parts, ideal for gears, bearings, and precision components. 6CNC manufactures high-accuracy custom Delrin (POM) parts to meet your exact specifications.
- Material group
- Plastic or composite
- Grades / options
- Delrin 150 Delrin 100 (AF)
- Compatible finishes
- As machined, tumbling, polishing
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
Polypropylene
Polypropylene CNC Machining Polypropylene CNC machining enables the production of precise, lightweight, and chemical-resistant parts with tight tolerances. 6CNC provides reliable custom components tailored to your specifications for a variety of industrial and consumer applications.
- Material group
- Plastic or composite
- Grades / options
- Confirm the exact grade, color, certification, and condition in the RFQ.
- Compatible finishes
- As machined, deburring, protective handling
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
PTFE / Teflon
PTFE CNC machining enables the production of chemical-resistant, low-friction, and high-performance parts suitable for demanding industrial applications. 6CNC delivers precise custom Teflon components tailored to your specifications.
- Material group
- Plastic or composite
- Grades / options
- Confirm the exact grade, color, certification, and condition in the RFQ.
- Compatible finishes
- As machined, deburring, specialized surface treatment
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
Acrylic
Acrylic CNC machining allows for precise cutting and shaping of clear, durable parts with smooth, polished surfaces. 6CNC provides custom acrylic components tailored to your specifications, ideal for displays, lenses, and protective covers.
- Material group
- Plastic or composite
- Grades / options
- Confirm the exact grade, color, certification, and condition in the RFQ.
- Compatible finishes
- As machined, hand polishing, vapor polishing where applicable
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
UHMW-PE
UHMW-PE CNC machining enables the production of highly durable, low-friction, and wear-resistant components. 6CNC manufactures precise custom polyethylene parts ideal for industrial, mechanical, and chemical applications.
- Material group
- Plastic or composite
- Grades / options
- Generic UHMW-PE
- Compatible finishes
- As machined, deburring, protective handling
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
Carbon Fiber
Carbon fiber CNC machining produces lightweight, high-strength composite parts with excellent stiffness and dimensional accuracy. 6CNC manufactures custom carbon fiber components tailored to demanding industrial, automotive, and aerospace applications.
- Material group
- Plastic or composite
- Grades / options
- Confirm the exact grade, color, certification, and condition in the RFQ.
- Compatible finishes
- As machined, edge sealing, protective coating
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
PEEK
PEEK is one of our core high-performance plastic materials. It combines the advantages of metal strength with plastic lightness and corrosion resistance, making it an ideal replacement for metals in extreme environments.
- Material group
- Plastic or composite
- Grades / options
- Virgin PEEK (Unfilled) 30% Glass Fiber Reinforced PEEK (PEEK GF30) 30% Carbon Fiber Reinforced PEEK (PEEK CF30)
- Compatible finishes
- As machined, polishing, specialized cleaning
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
FR4
FR4 is a flame-retardant glass fiber epoxy laminate widely used in electrical and electronic applications. It offers excellent mechanical strength, electrical insulation, and thermal stability, with properties comparable to G-10, making it ideal for circuit boards, insulators, and structural components.
- Material group
- Plastic or composite
- Grades / options
- Confirm the exact grade, color, certification, and condition in the RFQ.
- Compatible finishes
- As machined, deburring, protective coating
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
Rubber
Rubber CNC machining enables the production of precise, custom-engineered rubber parts for a wide range of industrial and mechanical applications. 6CNC delivers reliable, high-quality precision solutions tailored to your specifications.
- Material group
- Plastic or composite
- Grades / options
- Hydrolysis Resistant PU EPDM FKM Nitrile Silicone Neoprene
- Compatible finishes
- As machined, trimming, specialized surface treatment
- RFQ requirements
- Confirm grade, condition, certification, critical dimensions, finish, quantity, and acceptance criteria.
Finishing Options for 5-Axis Machined Parts
After CNC milling, 6CNC can coordinate finishing to improve corrosion resistance, wear performance, conductivity, friction, or appearance. Availability depends on the milled geometry, material, masking, coating thickness, dimensional allowance, and acceptance criteria.
| Finish | Applicable materials | Colors | Can be combined with |
|---|---|---|---|
 As Machined | Metals and plastics | Natural material color | Most secondary finishing processes |
 Anodizing | Aluminum | Clear, black, grey, red, blue, gold | Bead blasting, tumbling, masking |
 Black Oxide | Steel, selected stainless steel | Black | Tumbling, polishing, oil or wax seal |
 Powder Coating | Aluminum, steel, stainless steel | Wide range of standard and custom colors | Bead blasting, masking, conversion coating |
 Chromate Conversion | Aluminum and aluminum alloys | Clear, yellow, gold | Painting, powder coating, masking |
 Metal Plating | Aluminum, steel, stainless steel, brass, copper | Depends on nickel, zinc, chrome, tin, gold, or silver | Polishing, bead blasting, masking |
 Polishing | Metals, acrylic, selected plastics | Natural material color | Plating, anodizing, passivation |
 Bead Blasting | Aluminum, steel, stainless steel, brass, titanium | Uniform matte appearance | Anodizing, powder coating, plating |
Additional finishes may be available after technical review. Include the governing specification, thickness range, masking notes, and acceptance criteria with your RFQ.
From CAD Files to Delivered 5-Axis Parts
The 6CNC workflow keeps geometry review, multi-axis process planning, machining, inspection, finishing, and global delivery aligned.
Upload CAD Files
Send the model, drawing, material, quantity, finish, and delivery requirements.
5-Axis DFM & Quote
We compare 3-axis, 3+2, and simultaneous routes and review access, datums, setup count, tolerance, and inspection.
Machining & QC
Complex features are machined with agreed in-process checks and final inspection.
Finishing & Delivery
Finished parts are documented, packaged, and shipped using the agreed delivery method.
Manufacturing Resources for Reliable 5-Axis Machining
Our Shenzhen facility combines 3-axis, 4-axis, 5-axis machining, inspection, finishing coordination, and production control to support fast global delivery.
5-Axis CNC Machining Applications
5-axis machining supports complex parts where multi-face access, compound angles, continuous surfaces, and tightly related features affect performance.
Aerospace Components
Impellers, structural brackets, housings, manifolds, and lightweight parts with thin walls, deep pockets, and compound geometry.
Medical and Surgical Parts
Instrument components, orthopedic prototypes, compact housings, and ergonomic forms with complex contours and inspection-critical features.
Robotics & Automation
Robot joints, end-effectors, lightweight frames, actuator housings, and precision interfaces machined across multiple orientations.
Semiconductor Equipment
Complex chambers, handling components, precision fixtures, and equipment parts with demanding multi-face geometry and documentation.
DFM Review Before 5-Axis Programming Begins
Five-axis capability does not remove the need for clear datums, realistic tolerances, accessible geometry, stable workholding, and measurable acceptance criteria.
Is five-axis actually necessary?
We compare setup count, feature access, tolerance relationships, surface requirements, and cost against simpler process routes.
Can the tool and holder reach safely?
Tool length, holder clearance, collision risk, machine travel, and workholding are reviewed before programming.
Which features control the datum strategy?
Critical interfaces and related features determine workholding, orientation, machining sequence, and inspection alignment.
How will complex surfaces be inspected?
CMM, scanning, optical methods, gauges, and surface testing are selected according to drawing requirements.
Start Your 5-Axis CNC Machining Project
Upload the 3D model and controlled drawing. Our engineers will review the geometry and recommend the simplest reliable machining route.
FAQ About 5-Axis CNC Machining
What is the difference between 3+2 and simultaneous 5-axis machining?
In 3+2 machining, rotary axes position the part and remain locked during cutting. Simultaneous 5-axis machining moves rotary and linear axes together during cutting.
When is 5-axis machining worth the additional cost?
It is most valuable when it reduces multiple setups, improves access, protects relationships between faces, or is required for continuous complex geometry.
What tolerances can 6CNC achieve?
Capability depends on feature size, geometry, material, wall thickness, setup, finishing, and inspection. Feature-specific tolerances down to ±0.002 mm may be reviewed for suitable conditions.
What materials can be 5-axis machined?
Common options include aluminum, stainless steel, steel, titanium, brass, copper, POM, PEEK, nylon, and other engineering materials.
What should I include in an RFQ?
Send the 3D model, controlled drawing, material, quantity, finish, critical-feature notes, inspection requirements, destination, and required date.
